Why Slab Dimensions Matter More Than You Think
You have just received your graded cards back from the grading company. The slabs look pristine, the grades are exactly what you hoped for, and now you want to display them properly. You order a display case online, wait for delivery, slide your first slab in—and it rattles loosely. Or worse, it does not fit at all.
This is one of the most common and frustrating mistakes collectors make. PSA, BGS, SGC, and CGC slabs are not interchangeable when it comes to storage and display. Each company uses distinct dimensions, thicknesses, and edge profiles. A case built for PSA's thin holder will swallow a BGS subgrade slab, while a BGS-specific case will grip a PSA slab so tightly that insertion risks corner damage.
Understanding these dimensional differences is not just about aesthetics. An ill-fitting case fails to protect your investment. Loose slabs rattle against acrylic walls, causing micro-scratches and gradual edge wear. Overly tight cases require forceful insertion that can crack corners or warp the slab shell. In 2026. with graded card values continuing to climb across sports, Pokémon, and TCG categories, protecting the slab itself has become as important as protecting the card inside it.
Exact Slab Dimensions: The Numbers That Matter
Here are the precise measurements you need to know before purchasing any storage box, display case, or protective sleeve. These figures represent standard card slabs as measured by the collector community. Always verify against your specific slabs, as grading companies occasionally update holder designs.
| Grading Company | Width | Height | Thickness | Key Notes |
|---|---|---|---|---|
| PSA (post-2020 thin holder) | ~3.16" (80 mm) | ~5.32" (135 mm) | ~0.27" (5 mm) | Thinnest major slab; no stackability ridges |
| BGS / Beckett (standard) | ~3.39" (86 mm) | ~5.59" (142 mm) | ~0.35" (7 mm) | Thickest major slab; includes subgrade label |
| BGS / Beckett (thick card) | ~3.39" (86 mm) | ~5.59" (142 mm) | ~0.55"+ (14 mm+) | For jersey patches, booklets, memorabilia |
| SGC (current tuxedo) | ~3.23" (82 mm) | ~5.12" (130 mm) | ~0.22" (5.5 mm) | Slightly narrower than PSA; black frame design |
| CGC (standard) | ~3.16" (80 mm) | ~5.32" (135 mm) | ~0.27" (5 mm) | Similar footprint to PSA; different edge profile |
| CGC (comic/slabbed) | Varies | Varies | ~0.35"+ (9 mm+) | Significantly la |
The most critical dimension is thickness. PSA and CGC standard slabs measure approximately 5 mm thick, while BGS subgrade slabs run closer to 7 mm. That 2 mm difference might sound minor, but it is the difference between a secure fit and a dangerous wobble. A display case with 5.5 mm slot depth will grip a PSA slab perfectly but leave a BGS slab rattling with every vibration. Conversely, a case built for 7 mm BGS slabs will hold PSA slabs so loosely that they can shift during handling and develop surface scratches.
Scene examples: Technical dimension diagrams showing PSA slab measurements—approximately 80 mm width, 135 mm height, with 5 mm thickness.
PSA Slabs: The Market Standard With a Thin Profile
PSA remains the most recognized grading brand across sports cards, Pokémon, and TCG collecting. Their post-2020 thin holder measures approximately 3.16 inches wide by 5.32 inches tall, with a thickness of roughly 0.27 inches (5 mm).
This slim profile makes PSA slabs the easiest to store in bulk. A standard BCW or Ultra Pro graded card box holds 40 to 50 PSA slabs comfortably. However, the thin design comes with trade-offs. PSA slabs lack stackability ridges, meaning they slide around when stacked directly on top of each other. They are also known for corner vulnerability—impact to a corner can cause chipping or cracking more readily than thicker competitors.
For display cases, PSA slabs require slots with approximately 0.30 inches of interior depth to allow smooth insertion without forcing. Cases with magnetic closures should grip the slab firmly along the edges without clamping the corners. When shopping for PSA-specific cases, look for products that explicitly list compatibility with "post-2020 thin holder" dimensions, as older PSA slabs were slightly thicker.
BGS Slabs: Maximum Protection, Maximum Thickness
Beckett Grading Services (BGS) slabs are the thickest of the major grading companies, measuring approximately 0.35 inches (7 mm) for standard cards and up to 0.55 inches or more for thick memorabilia cards.
This extra bulk provides superior impact resistance. BGS slabs feature built-in stackability ridges that allow stable vertical stacking without sliding. The subgrade label—displaying centering, corners, edges, and surface scores—adds visual information but also contributes to the thickness. For collectors who prioritize physical protection over storage density, BGS slabs are the clear winner.
The downside is compatibility. A standard PSA storage box holds only about 78 BGS slabs compared to 108 PSA slabs in the same footprint. Display cases must accommodate the 7 mm thickness with adequate clearance. Cases built for PSA dimensions will fit BGS slabs loosely, leading to rattling and potential corner wear over time. For thick BGS slabs (jersey cards, booklet cards, patch autographs), you need cases specifically rated for "thick card" or "memorabilia" dimensions, typically 0.50 inches or greater.
Scene examples: BGS slab dimension diagrams showing the thicker 7 mm profile and subgrade label layout.
SGC Slabs: The Sleek Middle Ground
SGC's current "tuxedo" slab design sits between PSA and BGS in most dimensions. At approximately 5.5 mm thick, SGC slabs are slightly thicker than PSA but noticeably slimmer than BGS. The black border frame creates a distinctive aesthetic that makes cards pop visually, but it also means the outer dimensions differ from clear-frame competitors.
SGC slabs are reported to have the best corner durability of the major brands, with fewer cracking incidents than PSA. For storage, SGC slabs generally fit in PSA-rated boxes and cases, though the slightly different width and edge profile may create minor fit variations. If you collect across PSA and SGC, verify case compatibility with both slab types before committing to a large purchase.
CGC Slabs: The Pokémon and TCG Standard
CGC has become the dominant grading choice for Pokémon TCG, comics, and trading card games. Standard CGC slabs share a similar footprint with PSA—approximately 3.16 inches by 5.32 inches at 5 mm thick—but feature a different edge profile that can affect case fit.
The key distinction is CGC's comic book slabs, which are significantly larger at roughly 4 inches by 7 inches with thicknesses starting at 9 mm. These require entirely separate storage solutions. For standard TCG CGC slabs, many PSA-compatible cases work well, though the edge profile difference means some magnetic cases may not seal as tightly. Always test with one slab before buying cases in bulk.
Storage Box Compatibility: What Fits Where
Not all graded card storage boxes are created equal. Here is how the major slab types fit into common storage solutions:
BCW Graded Card Box: Holds approximately 40–50 PSA slabs, 30–35 BGS slabs, or 35–40 SGC slabs. The foam interior accommodates varying thicknesses but works best with uniform slab types.
Aluminum Slab Cases: Premium aluminum cases with customizable foam inserts can hold 40–60 mixed slabs depending on configuration. The PREZA 2-Row case, for example, holds 108 PSA slabs or 78 BGS slabs with foam inserts to prevent shifting.

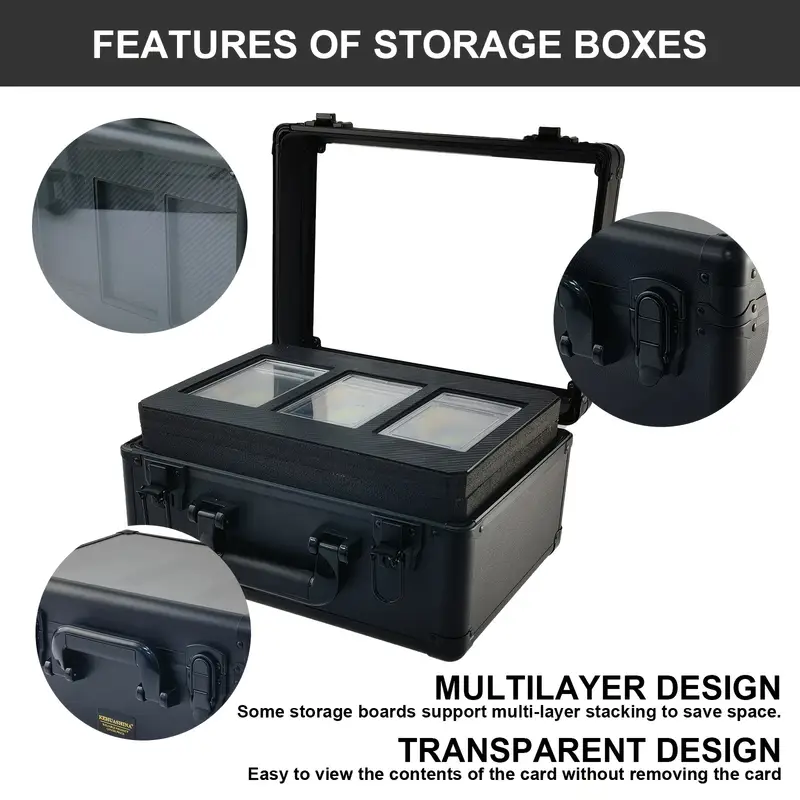

Multi-Row Organizers: Three-row plastic organizers with transparent lids work well for PSA and CGC slabs but may require removal of dividers for BGS slabs. Always check interior slot width before purchasing.

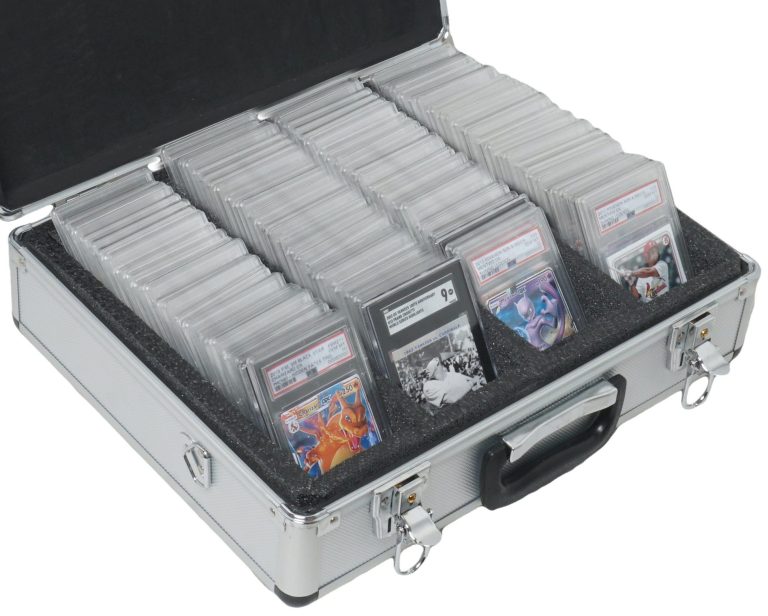

Scene examples: Aluminum graded card storage cases with foam inserts, showing organized slab storage for multiple grading types.

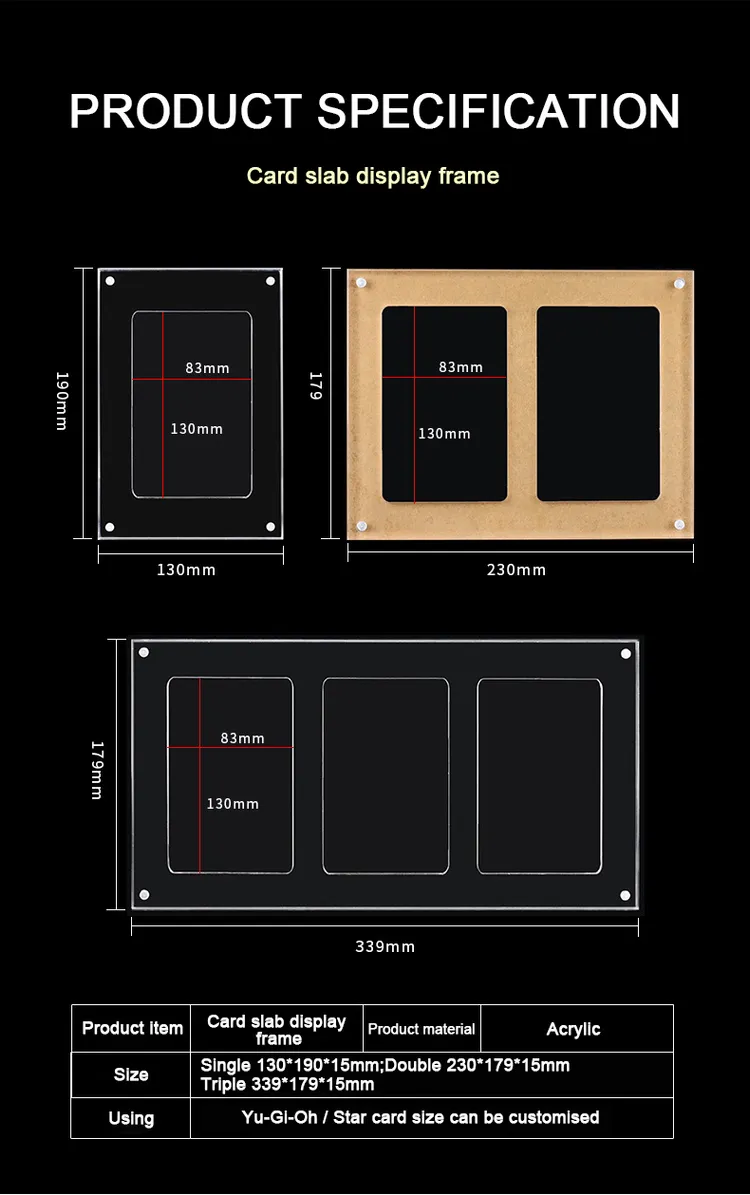

Display Case Compatibility: Single Slab and Multi-Slab
For single-slab display cases, the slot depth is the make-or-break specification:
- PSA/CGC/SGC standard: Requires slot depth of 0.30–0.32 inches
- BGS standard: Requires slot depth of 0.38–0.40 inches
- BGS thick/memorabilia: Requires slot depth of 0.55+ inches
Magnetic acrylic cases with adjustable or universal slot depths (typically 0.35–0.45 inches) can accommodate both PSA and BGS slabs, though PSA slabs may sit slightly loose. For the most secure fit, buy cases purpose-built for your primary slab type.
Multi-slab wall frames and cases must account for the widest slab in your collection. A frame designed for PSA slabs will leave BGS slabs protruding or forcing against the acrylic front. If you display mixed collections, choose frames with generous slot depth (0.40+ inches) and foam or felt backing that accommodates thickness variation.
Slab Sleeves and Outer Protection
Regardless of which grader you use, slab sleeves add a critical layer of protection. These thin plastic or polyester sleeves slip over the slab exterior, preventing scratches during storage and handling.
Sleeve dimensions vary by brand:
- PSA sleeves: Typically 86 mm x 137 mm
- BGS sleeves: Typically 90 mm x 142 mm
- Universal sleeves: 90 mm x 140 mm, accommodating most major slabs with slight looseness on PSA
Never store slabs without sleeves if they will contact each other. Acrylic-on-acrylic contact creates hairline scratches that reduce visual clarity and, in extreme cases, can affect resale value.

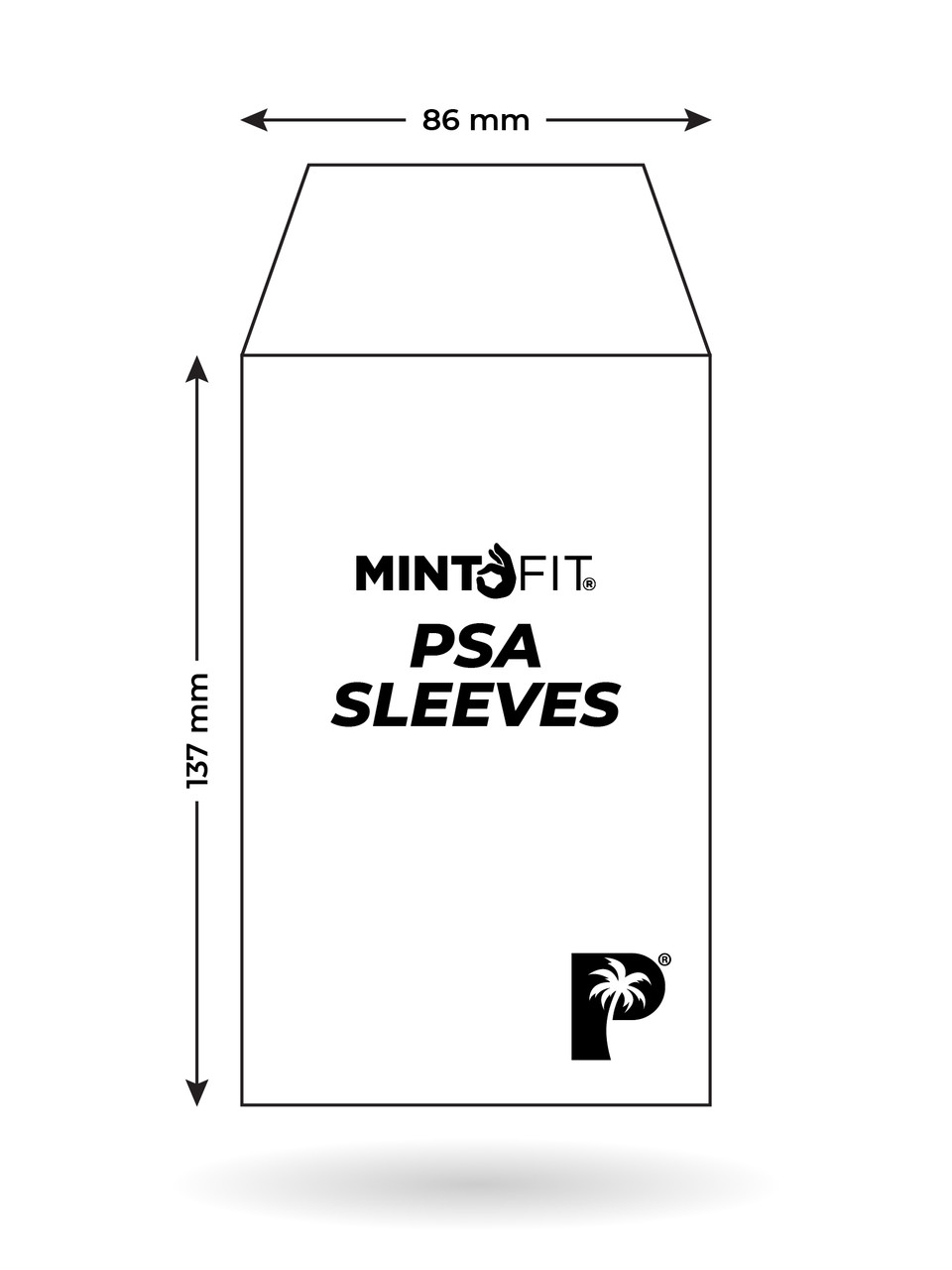

Scene example: PSA slab sleeve packaging showing dimensions of 86 mm width by 137 mm height for protective outer covering.
How to Measure Your Own Slabs
If you are unsure which generation of slab you own or want to verify before purchasing cases, use a digital caliper to measure:
- Width: Measure the widest point across the slab face
- Height: Measure from top to bottom edge
- Thickness: Measure at the center of the slab, not the edges
Compare your measurements against the chart above. If your slab falls between standard categories, it may be an older generation holder or a thick-card variant. When in doubt, size up on case slot depth—a slightly loose fit is safer than a forced insertion.
The Bottom Line: Match Your Case to Your Slab
The most expensive display case is worthless if it does not fit your slabs securely. Before purchasing any storage or display product, confirm these three specifications:
- Interior slot width: Must exceed your slab's width by at least 0.10 inches for smooth insertion
- Interior slot depth: Must match or exceed your slab's thickness; BGS slabs need 0.38+ inches minimum
- Edge profile compatibility: CGC and PSA may share dimensions but have different corner shapes that affect magnetic seal fit
For collectors with mixed grading company collections, consider modular systems with adjustable foam inserts or cases specifically marketed as "universal fit" with generous tolerances. When displaying, group slabs by grader within the same case to ensure consistent fit and visual alignment.
Frequently Asked Questions (FAQ)
Q: Will a PSA slab fit in a BGS display case?
A: A PSA slab will fit loosely in a BGS-rated case because BGS cases are built for 7 mm thickness while PSA slabs are only 5 mm. The loose fit causes rattling and potential surface scratches. Use PSA-specific cases or universal-fit cases with foam inserts for mixed collections.
Q: Are BGS slabs too thick for standard storage boxes?
A: BGS slabs fit in most graded card storage boxes but at reduced capacity. A box that holds 108 PSA slabs typically holds only 78 BGS slabs. Always verify box capacity by grader before purchasing, and look for boxes with adjustable foam inserts if you store mixed slab types.
Q: Do CGC slabs fit in PSA cases?
A: Standard CGC slabs share similar dimensions with PSA (approximately 3.16" x 5.32" x 0.27"), but the edge profile differs slightly. Many PSA-compatible cases work for CGC slabs, though magnetic closures may not seal identically. Test with one slab before buying in bulk.
Q: What is the thickest graded card slab?
A: BGS thick-card and memorabilia slabs are the thickest standard offerings, measuring 0.55 inches (14 mm) or more. These require specialized "thick card" display cases and storage boxes. PSA and CGC also offer thick-card holders, but BGS leads in maximum thickness capacity.
Q: Can I store different grader slabs in the same box?
A: Yes, but use caution. Mixed storage works best in boxes with foam inserts or adjustable dividers that prevent slabs from contacting each other. Without separation, a thick BGS slab can press against and damage a thinner PSA slab during transport.
Q: How do I know if my slab is an older generation holder?
A: Older PSA slabs (pre-2020) are slightly thicker than current thin holders. Measure with a digital caliper—if your PSA slab exceeds 0.30 inches in thickness, it may be an older generation. Older BGS and SGC slabs also had different dimensions; compare against current specs to confirm.
Q: Do slab sleeves fit all grading companies?
A: Most universal sleeves accommodate PSA, BGS, SGC, and CGC standard slabs, but fit varies. PSA-specific sleeves (86 mm x 137 mm) fit snugly on PSA slabs but may be tight on BGS. BGS-specific sleeves (90 mm x 142 mm) fit all major brands with slight looseness on PSA. Buy sleeves sized for your largest slab type.
Q: What case slot depth do I need for BGS subgrade slabs?
A: BGS standard subgrade slabs require a minimum slot depth of 0.38 inches (9.7 mm). For thick-card BGS slabs, you need 0.55 inches (14 mm) or greater. Cases built for PSA's 0.27-inch thickness will not securely hold BGS slabs.
Q: Are SGC slabs closer to PSA or BGS in size?
A: SGC current tuxedo slabs are closer to PSA in overall footprint but slightly thicker at 5.5 mm versus PSA's 5 mm. They are narrower than BGS and fit most PSA-rated cases, though the black frame design creates a different visual profile.
Q: Can I force a thick slab into a thin case?
A: Never force a slab into an undersized case. Forced insertion risks cracking the slab corners, warping the acrylic shell, or damaging the card inside. If the slab does not slide in smoothly with light pressure, the case is too small. Always size up rather than forcing a fit.
Grading your cards is only half the battle. Protecting them in the right case, box, or display frame ensures that the grade you paid for stays pristine—and that your collection looks as good as it grades. Before your next storage or display purchase, pull out your caliper, check your slab specs, and buy with confidence knowing exactly what will fit.
